AVR SVC-T Series

User Friendly Digital Display

Heavy Duty High Performance AVR

Output Power Factor 1.0

Transient Voltage Surge Suppression

Over Current Protection

Open Phase & Overload Protection

Automatic Timer Delay

Download Brochure

Categories: AVR, Products Tags: SVC-T 1000, SVC-T 10000, SVC-T 1500, SVC-T 2000, SVC-T 3000, SVC-T 5000, SVC-T 7500

SVC-T 1000


MODEL	SVC-T 1000
CAPACITY (VA)	1000VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	2 x British Socket
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	Fuse
BYPASS FUNCTION	N/A
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	N/A
PHYSICAL
DIMENSION D x W x H (mm)	188.3 x190 x 132
NET WEIGHT	4.15
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour

SVC-T 1500


MODEL	SVC-T 1500
CAPACITY (VA)	1500VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	2 x British Socket
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	Fuse
BYPASS FUNCTION	N/A
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	N/A
PHYSICAL
DIMENSION D x W x H (mm)	234 x 213 x 155
NET WEIGHT	5.3
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour

SVC-T 2000


MODEL	SVC-T 2000
CAPACITY (VA)	2000VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	2 x British Socket
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	Fuse
BYPASS FUNCTION	N/A
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	N/A
PHYSICAL
DIMENSION D x W x H (mm)	234 x 213 x 155
NET WEIGHT	6.9
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour

SVC-T 3000


MODEL	SVC-T 3000
CAPACITY (VA)	3000VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	2 x British Socket + 1 x Terminal
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	MCB
BYPASS FUNCTION	Yes
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	N/A
PHYSICAL
DIMENSION D x W x H (mm)	318.5 x 256 x 200
NET WEIGHT	11.25
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour

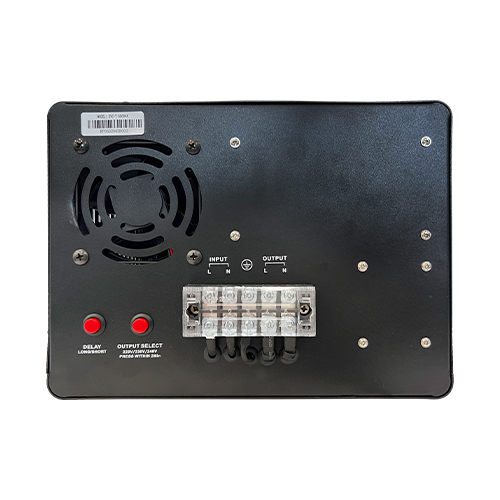

SVC-T 5000


MODEL	SVC-T 5000
CAPACITY (VA)	5000VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	1 x Terminal Type
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	MCB
BYPASS FUNCTION	Yes
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	Yes
PHYSICAL
DIMENSION D x W x H (mm)	318.5 x 256 x 200
NET WEIGHT	14.25
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour

SVC-T 7500


MODEL	SVC-T 7500
CAPACITY (VA)	7500VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	2 x British + 1 x Terminal
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	MCB
BYPASS FUNCTION	Yes
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	Yes
PHYSICAL
DIMENSION D x W x H (mm)	395 x 288 x 255
NET WEIGHT	21.95
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour

SVC-T 10000


MODEL	SVC-T 10000
CAPACITY (VA)	10,000VA
PHASE	Single Phase
TECHNOLOGY	Servo Motor
INPUT
VOLTAGE RANGE	160-270VAC
FREQUENCY	50Hz or 60 Hz
OUTPUT
OUTPUT VOLTAGE	220V / 230V / 240V Selectable
FREQUENCY	50Hz or 60Hz
PRECISION	+- 3%
POWER FACTOR	1
OUTPUT SOCKET	2 x British + 1 x Terminal
STATUS INDICATION
DIGITAL DISPLAY	Input Voltage, Output Voltage, "L" alarm (UNDER VOLTAGE PROTECTION), "O" alarm (OVER CURRENT PROTECTION), "C" alarm (OVER TEMPERATURE PROTECTION)
L.E.D INDICATOR	Work, Delay, Protect
AUTOMATIC TIMER DELAY	3s Short Delay & 180s Long Delay
SURGE PROTECTION & FILTERING
OVER/LOW VOLTAGE PROTECTION	Yes
RETURN FUNCTION	Yes
TEMPERATURE PROTECTION	Yes
SHORT CIRCUIT PROTECTION	MCB
BYPASS FUNCTION	Yes
EFFICIENCY
AC-AC	0.96
OPERATING CONDITIONS
TRANSFORMER	50% copper & 50% aluminum
OPERATING TEMPERATURE	-5°C - 60°C
NOISE LEVEL	50dB
OPERATING RELATIVE HUMIDITY	20% to 90% Relative Humidity, Non-Condensing
COOLING FAN	Yes
PHYSICAL
DIMENSION D x W x H (mm)	395 x 288 x 255
NET WEIGHT	25.05
WARRANTY
AVR WARRANTY	2 Years Include Parts & Labour
