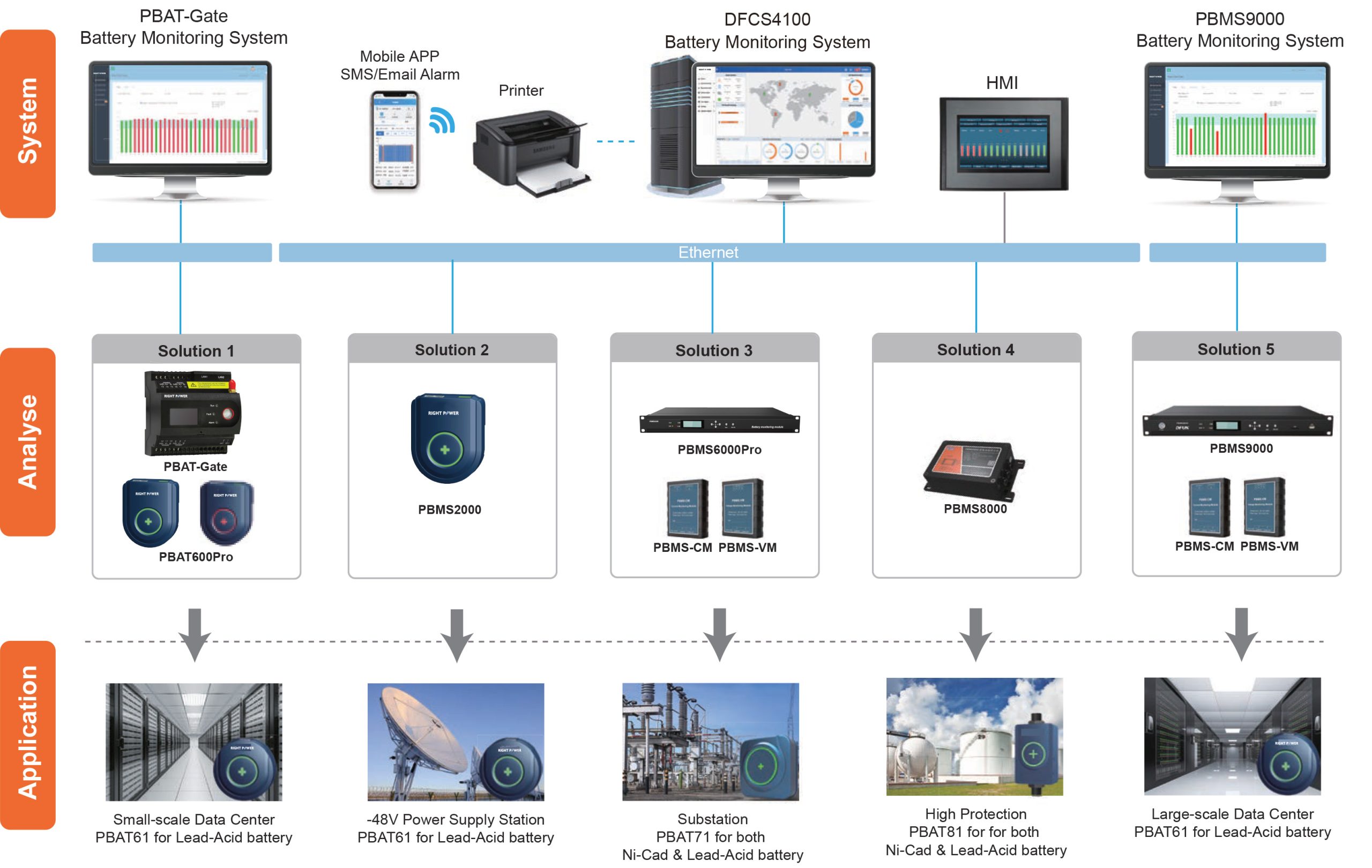

System Structure
 |

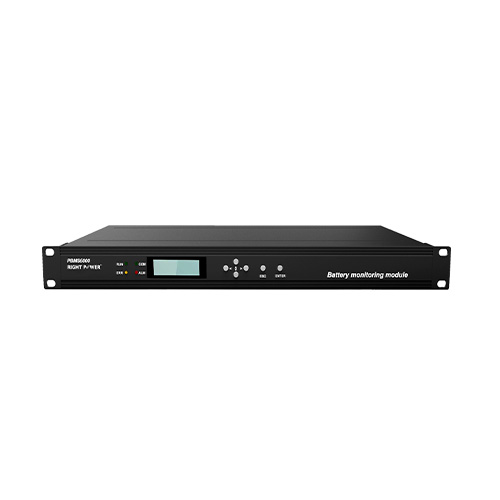

Battery Monitoring System (BMS)
For Data Center & UPS Application
- 24/7 Hours On-line Monitoring & Remote Alarms Notification
- Suitable for UPS and Data Center Application
- Anti-interference Design, Support to Connect with High-frequency UPS
- Build-in Web Server with Visual Display
- Local Display via HMI
- On-line Balancing
- On-line Remote Firmware Upload
- Auto-Sensing for the Battery Sensor’s ID Address
- Multi-Communication Protocol (MODBUS-TCP, SNMP)
- Support 4G sending SMS alarm
- Apply with IEEE 1188-2005 Standard
Order Information
| System Structure | Order Code | Description | Remark | |

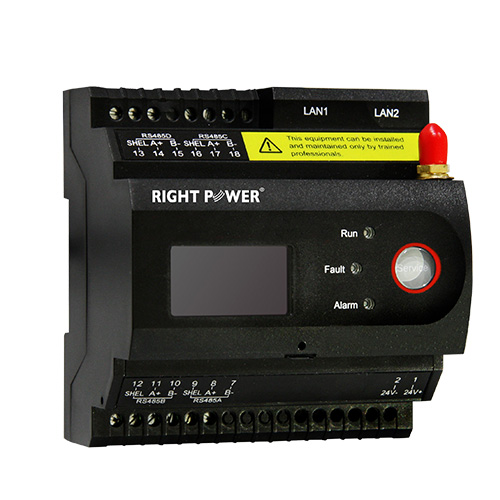

| Management Layer | PBAT-GATE-4CL | PBAT-Gate Intelligent Gateway with 4 RS485 ports, Support 4G sending SMS Alarm | One Per UPS Max. 4 strings x 120 batteries = 480 batteries | |
| PBAT-GATE-2ZL | PBAT-Gate Intelligent Gateway with 2 RS485 ports, 4 DI, 2AI, 1DO, Support 4G sending SMS Alarm | "One Per UPS Max. 2 strings x 120 batteries = 240 batteries" | ||
| Battery String Sensor | PBAT 600 | Battery String Sensor | One Per String 1 RS485 port, One PBAT600 can connect Max. 120pcs PBAT61 series battery sensor | |

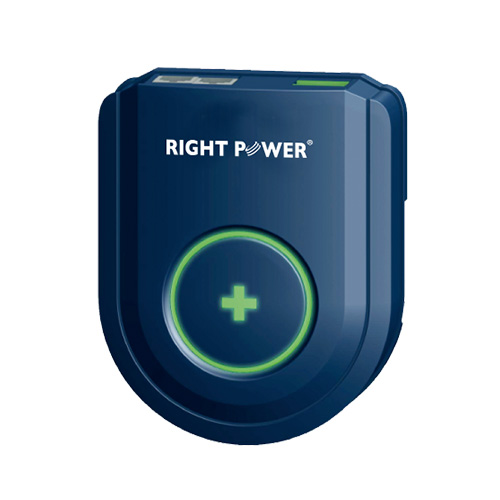

| Battery Cell Sensor | PBAT 61-02 | 2 Volt Battery Cell Sensor | One Per Battery Cell | |
| PBAT 61-06 | 6 Volt Battery Cell Sensor | One Per Battery Cell | ||
| PBAT 61-12 | 12 Volt Battery Cell Sensorr | One Per Battery Cell | ||
| Accessory | Cell Sensor Communication Cable | PBAT-COM-40 | Cable Terminal: RJ11 Port, Length: 40cm | |
| PBAT-Com-70 | Cable Terminal: RJ11 Port, Length: 70cm (Standard) | |||
| Battery Measuring Cable | PBAT-C1-U-M8-30 | Cable Terminal: U Type, Hole: Diameter, 8mm, Length: 30cm (Standard) | ||
| PBAT-C1-O-M8-30 | Cable Terminal: O Type, Hole Diameter, 8mm, Length: 30cm | |||
| Hall Sensor for PBAT600 | CS050EK1T5 | Rated Input: 50A | Measure Range: 0~ ±100A, ɸ 20mm | |
| CS100EK2T5 | Rated Input: 100A | Measure Range: 0~ ±200A, ɸ 40mm | ||
| CS200EK2T5 | Rated Input: 200A | Measure Range: 0~ ±400A, ɸ 40mm | ||
| CS400EK2T5 | Rated Input: 400A | Measure Range: 0~ ±800A, ɸ 40mm | ||
| CS500EK2T5 | Rated Input: 500A | Measure Range: 0~ ±1000A, ɸ 40mm | ||
| Power Supply | MDR-20-24 | 24VDC Power Source, 220VAC to 24VDC | ||
| Optional Module | Local Display & Operation | HMI-Gate | 7" inch Touch Screen HMI | One Per PBAT-Gate Communication with PBAT-Gate via Ethernet |
| Cabinet for Pre-Wiring in Factory | PBAT-BOX-400 | Dimension: 400*320*138.5mm (H*W*D) | Pre-Install & Pre-wiring for PBAT-GATE, PBAT600 and power supply converter Pre-Mount HMI-Gate if customer selected | |
| PBAT-BOX-600 | Dimension: 600*320*138.5mm (H*W*D) |
