PhysicalSpecifications
PhysicalSpecifications | ||||||||
Nominal Voltage | Nominal Capacity (10HR) | Dimension | Weight ±3% | Internal Resistance (In full charge status) | Standard Terminals | |||
L | W | H | TH | |||||
12V | 150AH | 566±4mm | 110±2mm | 288±3mm | 296±3mm | Approx 44.0kg (97.0lbs) | ≈5.00mΩ | T28 (standard) |

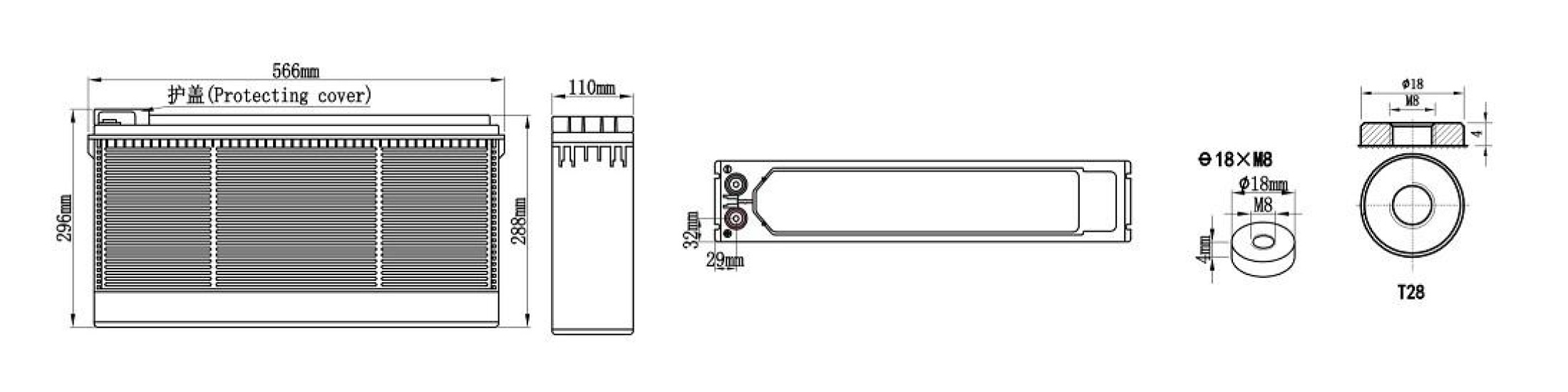

Dimensions | ||||||||
