| Physical Specifications | ||||||||
| Nominal Voltage | Nominal Capacity (10HR) | Dimension | Weight ±3% | Internal Resistance (In full charge status) | Standard Terminals | |||
| L | W | H | TH | |||||
| 12V | 200AH | 561±4mm | 125±2mm | 317±3mm | 317±3mm | Approx 56.5kg (124.5lbs) | ≈3.70mΩ | T28 (standard) |

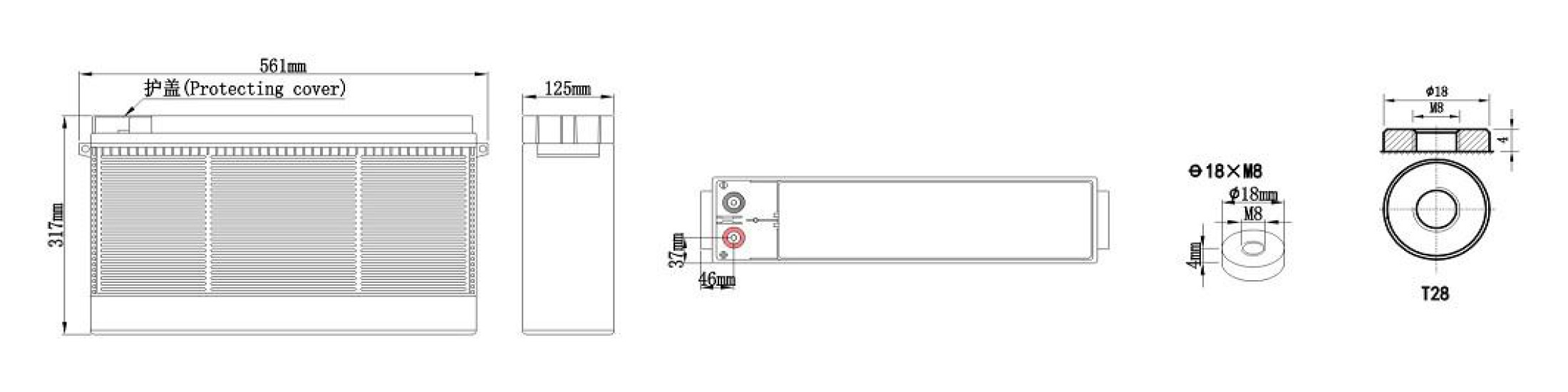

| Dimension | ||||||||
| Charge Characteristics (25ºC/77ºF) | Discharge Characteristic (25ºC/77ºF) | |
 |  | |
| Cycle Life in Relation to Depth of Discharge | Temperature vs Float Life | |
 |  | |
| Capacity Curve At Different Temperature | Self Discharge Characteristics | |
 |  |
