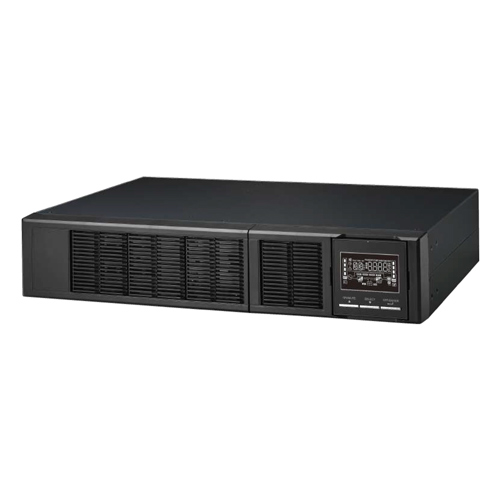

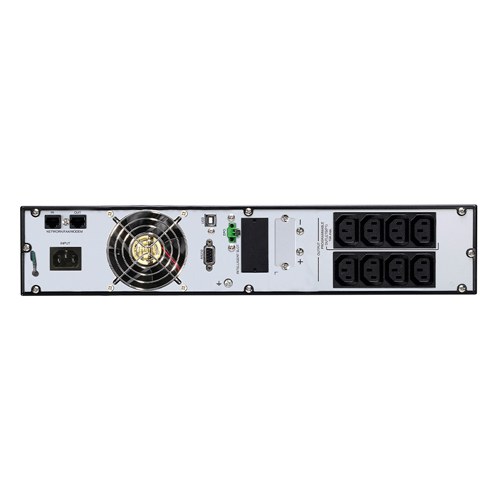

PowerBridge LiFe RT 1K
MODEL PowerBridge LiFe RT 1K PHASE Single phase with ground CAPACITY 1000 VA / 900 W INPUT NOMINAL VOLTAGE 200/208/220/230/240 VAC VOLTAGE RANGE LOW LINE TRANSFER 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 3 % based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0 LOW LINE COMEBACK 175 VAC / 155 VAC / 135 VAC / 125 VAC ± 3 % based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0 HIGH LINE TRANSFER 150 VAC ± 3% or 300 VAC ± 3% HIGH LINE COMEBACK 145 VAC ± 3% or 290 VAC ± 3% FREQUENCY RANGE 40Hz ~ 70Hz POWER FACTOR 0.99 @ nominal voltage (100% load) THDi ≦ 5% @160-265 VAC or 80~140 VAC input and full linear load condition 10% @160-265 VAC or 80~140 VAC input and 50% linear load condition OUTPUT OUTPUT VOLTAGE 200*/208*/220/230/240 VAC OUTPUT POWER FACTOR 1.0 AC VOLTAGE REGULATION (Batt. Mode) ± 1% FREQUENCY RANGE (Synchronized Range) 57~63Hz or 47 ~ 53 Hz FREQUENCY RANGE (Batt. Mode) 60 Hz ± 0.1 Hz or 50Hz ± 0.1 Hz CURRENT CREST RATIO 3:1 HARMONIC DISTORTION 2 % THD (Linear Load) ; 4 % THD (Non-linear Load) TRANSFER TIME AC TO BATTERY MODE ZERO INVERTER TO BYPASS <4 ms (Typical) ECO TO BYPASS 8 ms (Typical) WAVEFORM (Batt. Mode) Pure Sinewave OVERLOAD CAPACITY AC MODE 100% < Load < 110% Overload warning only 110% < Load < 130% 5min (+/- 4sec) 130% < Load < 140% 30sec (+/- 1sec) 140% < Load 1.5sec (+/- 0.5sec). INVERTER (BATTERY) MODE 100% < Load < 110% Overload warning only 110% < Load < 130% 1min (+/- 4sec) 130% < Load < 140% 2sec (+/- 1sec) 140% < Load 1.5sec (+/- 0.5sec). EFFICIENCY AC MODE @ FULL LOAD 90%@ Battery fully charged ECO MODE @ FULL LOAD 96% @ full charged battery BATTERY MODE @ FULL LOAD 87% BATTERY BATTERY TYPE LiFe 247500 BATTERY LIFECYCLE > 2000 SINGLE CELL TYPE LFP26650P-260 BATTERY NUMBERS 1 BATTERY CELL CONFIGURATION 8S3P BATTERY VOLTAGE 25.6V BATTERY VAH (Factory Setting) 7.5Ah AUTONOMY TIME @ Full Load 9.5 minutes CHARGING VOLTAGE 28VDC ± 1% CHARGING MODE 2 stage charging management(CC-CV) CHARGING CURRENT 1A/2A/4A(Default)/6A/8A (Adjustable) TYPICAL RECHARGE TIME 2 hours recover to 90% capacity STATUS INDICATION LCD DISPLAY Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault AUDIBLE ALARM Battery Mode, Low Battery, UPS Fault, Overload COMMUNICATION POWER MANAGEMENT SOFTWARE Support Window Family, Linux & MAC INTERFACE USB & RS-232 Communication Port INTELLIGENT SLOT SNMP Slot PHYSICAL OPERATING ENVIRONMENT 0-40°C, 20 - 95% Relative Humidity (Non-Condensing) NOISE LEVEL <50dBA @ 1 Meter DIMENSION (D x W x H)mm 410 x 438 x 88 (2U) NET WEIGHT (KG) 10.8 WARRANTY UPS WARRANTY 5 Years Full Warranty include Parts, Labour & Battery STANDARD EMC / SAFETY CE (EMC: EN62040-2 C2) for HV models, FCC (Class A) for LV models, Battery Pack comply to UL1973 *Specication subjects to change without prior notice
