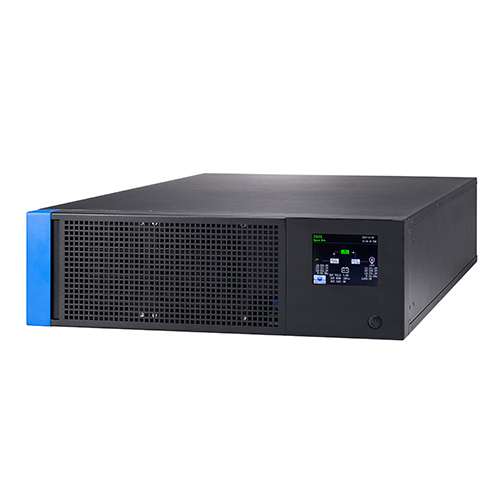

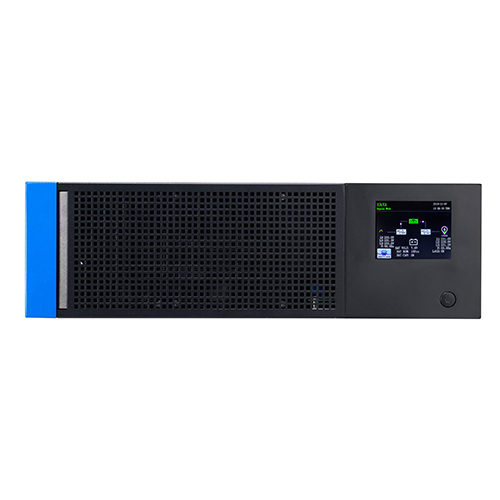

PowerBridge PRO RT Series
True Double Conversion Online UPS
- Tower/Rackmount Type Design
- 3.5″ Touch Screen LCD Display
- LCD Screen Auto-Rotation with Rack Position (10K-30K Models only)
- Adjustable Input & Output 31/33 (10K-20K) Configuration and 33 (30K-60K) Configuration
- DSP Technology Guarantees High Performance
- Output Power Factor 1.0
- Active Power Factor Correction in all Phases
- ECO Mode Function for Energy Saving
- Emergency Power Off Function (EPO)
- Generator Compatible
- Supports Dual AC Inputs
- Optional N+X Parallel Capability
- Optional Isolation Transformer Offer Full Isolation & Complete Common Mode Noise
- Comes with RS 232 Port , USB Port, SNMP Slot & Power Management Software
- Description
- PowerBridge PRO RT 10KRS
- PowerBridge PRO RT 15KRS
- PowerBridge PRO RT 20KRS
- PowerBridge PRO RT 30KRS
- PowerBridge PRO RT 40KRS

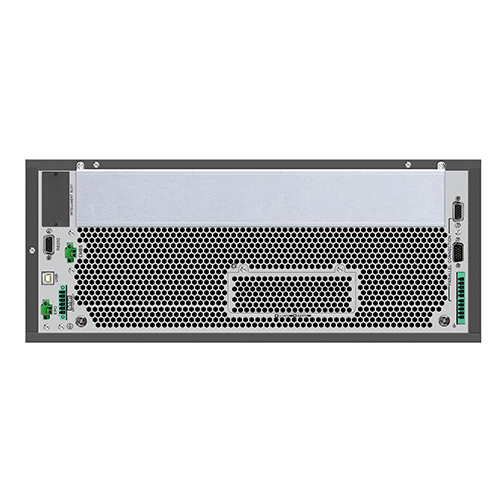

- PowerBridge PRO RT 60KRS

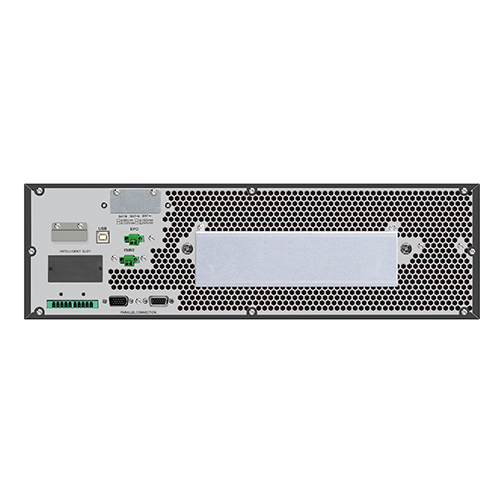

PowerBridge PRO RT 10KRS
| MODEL | PowerBridge PRO RT 10KRS |
| PHASE | 3-Phase in / 1-phase out or 3-phase in / 3-phase out |
| CAPACITY (KVA/WATTS) | 10KVA / 10KW |
| PARALLEL CAPABILITY | 4 |
| INPUT | |
| NORMAL INPUT | 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| VOLTAGE RANGE | 190-520 VAC (3-phase) @ 50% load ; 305-478 VAC (3-phase) @ 100% load |
| FREQUENCY | 46~54 Hz or 56~64Hz |
| POWER FACTOR | ≥0.99 @ 100% load |
| OUTPUT | |
| OUTPUT VOLTAGE | 3 x 360*/380/400/415 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| OUTPUT POWER FACTOR | 1.0 |
| AC VOLTAGE REGULATION (Batt. Mode) | ± 1% |
| FREQUENCY RANGE (Synchronized Range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| FREQUENCY RANGE (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ± 0.1Hz |
| CURRENT CREST RATIO | 3:1 |
| HARMONIC DISTORTION | ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load) |
| TRANSFER TIME (AC to Battery Mode) | ZERO |
| TRANSFER TIME (Inverter to Bypass) | ZERO |
| WAVEFORM | PURE SINEWAVE |
| OUTPUT SOCKET | Hard-Wiring (Terminal Block) |
| OVERLOAD (AC Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| OVERLOAD (Battery Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| EFFICIENCY | |
| AC MODE | 95.5% |
| ECO MODE | 98.5% |
| BATTERY MODE | 94.5% |
| BATTERY | |
| BATTERY TYPE | Depending on the applications |
| BATTERY NUMBERS | 20 PCS |
| CHARGING CURRENT (max.) | 1A~12A(Adjustable) |
| CHARGING VOLTAGE | +/- 13.65 VDC x N (N=10) |
| STATUS INDICATION | |
| LCD DISPLAY | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault |
| AUDIBLE ALARM | Battery Mode, Low Battery, UPS Fault, Overload |
| COMMUNICATION | |
| POWER MANAGEMENT SOFTWARE | Support Window Family, Linux & MAC |
| INTERFACE | USB & RS-232 Communication Port |
| INTELLIGENT SLOT | AS400 / SNMP (Optional) |
| SURGE PROTECTION SOFTWARE | |
| SPIKE, SURGE & LIGHTNING PROTECTION | YES |
| OVERLOAD, SHORT CIRCUIT PROTECTION | YES |
| PHYSICAL | |
| OPERATING ENVIRONMENT | 0-40°C, < 95% Relative Humidity (Non-Condensing) |
| NOISE LEVEL | Less than 62dBA @ 1 Meter |
| DIMENSION (D x W x H)mm | 680 x 438 x 133 (3U) |
| WEIGHT (Kgs) | 26 |
| WARRANTY | |
| UPS WARRANTY | 2 Years Full Warranty include Parts, Labour & Battery |
| *Specication subjects to change without prior notice |
PowerBridge PRO RT 15KRS
| MODEL | PowerBridge PRO RT 15KRS |
| PHASE | 3-Phase in / 1-phase out or 3-phase in / 3-phase out |
| CAPACITY (KVA/WATTS) | 15KVA / 15KW |
| PARALLEL CAPABILITY | 4 |
| INPUT | |
| NORMAL INPUT | 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| VOLTAGE RANGE | 190-520 VAC (3-phase) @ 50% load ; 305-478 VAC (3-phase) @ 100% load |
| FREQUENCY | 46~54 Hz or 56~64Hz |
| POWER FACTOR | ≥0.99 @ 100% load |
| OUTPUT | |
| OUTPUT VOLTAGE | 3 x 360*/380/400/415 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| OUTPUT POWER FACTOR | 1.0 |
| AC VOLTAGE REGULATION (Batt. Mode) | ± 1% |
| FREQUENCY RANGE (Synchronized Range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| FREQUENCY RANGE (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ± 0.1Hz |
| CURRENT CREST RATIO | 3:1 (MAX) |
| HARMONIC DISTORTION | ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load) |
| TRANSFER TIME (AC to Battery Mode) | ZERO |
| TRANSFER TIME (Inverter to Bypass) | ZERO |
| WAVEFORM | PURE SINEWAVE |
| OUTPUT SOCKET | Hard-Wiring (Terminal Block) |
| OVERLOAD (AC Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| OVERLOAD (Battery Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| EFFICIENCY | |
| AC MODE | 95.5% |
| ECO MODE | 98.5% |
| BATTERY MODE | 94.5% |
| BATTERY | |
| BATTERY TYPE | Depending on the applications |
| BATTERY NUMBERS | 32~40 pcs (Adjustable) |
| CHARGING CURRENT (max.) | 1A~12A(Adjustable) |
| CHARGING VOLTAGE | +/- 13.65 VDC x N (N=16~20) |
| STATUS INDICATION | |
| LCD DISPLAY | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault |
| AUDIBLE ALARM | Battery Mode, Low Battery, UPS Fault, Overload |
| COMMUNICATION | |
| POWER MANAGEMENT SOFTWARE | Support Window Family, Linux & MAC |
| INTERFACE | USB & RS-232 Communication Port |
| INTELLIGENT SLOT | AS 400 / SNMP (Optional) |
| SURGE PROTECTION & FILTERING | |
| SPIKE, SURGE & LIGHTING PROTECTION | YES |
| OVERLOAD, SHORT CIRCUIT PROTECTIOB | YES |
| PHYSICAL | |
| OPERATING ENVIRONMENT | 0-40°C, < 95% Relative Humidity (Non-Condensing) |
| NOISE LEVEL | Less than 65dB @ 1 Meter |
| DIMENSION (D x W x H)mm | 680 x 438 x 133 (3U) |
| WEIGHT (Kgs) | 28 |
| WARRANTY | |
| UPS WARRANTY | 2 Years Full Warranty include Parts, Labour & Battery |
| *Specication subjects to change without prior notice |
PowerBridge PRO RT 20KRS
| MODEL | PowerBridge PRO RT 20KRS |
| PHASE | 3-Phase in / 1-phase out or 3-phase in / 3-phase out |
| CAPACITY (KVA/WATTS) | 10KVA / 20KW |
| PARALLEL CAPABILITY | 4 |
| INPUT | |
| NORMAL INPUT | 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| VOLTAGE RANGE | 190-520 VAC (3-phase) @ 50% load ; 305-478 VAC (3-phase) @ 100% load |
| FREQUENCY | 46~54 Hz or 56~64Hz |
| POWER FACTOR | ≥0.99 @ 100% load |
| OUTPUT | |
| OUTPUT VOLTAGE | 3 x 360*/380/400/415 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| OUTPUT POWER FACTOR | 1.0 |
| AC VOLTAGE REGULATION (Batt. Mode) | ± 1% |
| FREQUENCY RANGE (Synchronized Range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| FREQUENCY RANGE (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ± 0.1Hz |
| CURRENT CREST RATIO | 3:1 (MAX) |
| HARMONIC DISTORTION | ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load) |
| TRANSFER TIME (AC to Battery Mode) | ZERO |
| TRANSFER TIME (Inverter to Bypass) | ZERO |
| OUTPUT SOCKET | Hard-Wiring (Terminal Block) |
| WAVEFORM | PURE SINEWAVE |
| OVERLOAD (AC Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| OVERLOAD (Battery Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| EFFICIENCY | |
| AC MODE | 95.5% |
| ECO MODE | 98.5% |
| BATTERY MODE | 94.5% |
| BATTERY | |
| BATTERY TYPE | Depending on the applications |
| BATTERY NUMBERS | 32~40 pcs (Adjustable) |
| CHARGING CURRENT (max.) | 1A~12A(Adjustable) |
| CHARGING VOLTAGE | +/- 13.65 VDC x N (N=16~20) |
| STATUS INDICATION | |
| LCD DISPLAY | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault |
| AUDIBLE ALARM | Battery Mode, Low Battery, UPS Fault, Overload |
| COMMUNICATION | |
| POWER MANAGEMENT SOFTWARE | Support Window Family, Linux & MAC |
| INTERFACE | USB & RS-232 Communication Port |
| INTELLIGENT SLOT | AS 400 / SNMP (Optional) |
| SURGE PROTECTION & FILTERING | |
| SPIKE, SURGE & LIGHTNING PROTECTION | YES |
| OVERLOAD, SHORT CIRCUIT PROTECTION | YES |
| PHYSICAL | |
| OPERATING ENVIRONMENT | 0-40°C, < 95% Relative Humidity (Non-Condensing) |
| NOISE LEVEL | Less than 65dB @ 1 Meter |
| DIMENSION (D x W x H)mm | 680 x 438 x 133 (3U) |
| WEIGHT (Kgs) | 28 |
| WARRANTY | |
| UPS WARRANTY | 2 Years Full Warranty include Parts, Labour & Battery |
| *Specication subjects to change without prior notice |
PowerBridge PRO RT 30KRS
| MODEL | PowerBridge PRO RT 30KRS |
| PHASE | 3-phase in / 3-phase out |
| CAPACITY (KVA/WATTS) | 30KVA / 30KW |
| PARALLEL CAPABILITY | 4 |
| INPUT | |
| NORMAL INPUT | 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| VOLTAGE RANGE | 190-520 VAC (3-phase) @ 50% load ; 305-478 VAC (3-phase) @ 100% load |
| FREQUENCY | 46~54 Hz or 56~64Hz |
| POWER FACTOR | ≥0.99 @ 100% load |
| OUTPUT | |
| OUTPUT VOLTAGE | 3 x 360*/380/400/415 VAC (3Ph+N) |
| OUTPUT POWER FACTOR | 1.0 |
| AC VOLTAGE REGULATION (Batt. Mode) | ± 1% |
| FREQUENCY RANGE (Synchronized Range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| FREQUENCY RANGE (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ± 0.1Hz |
| CURRENT CREST RATIO | 3:1 (MAX) |
| HARMONIC DISTORTION | ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load) |
| TRANSFER TIME (AC to Battery Mode) | ZERO |
| TRANSFER TIME (Inverter to Bypass) | ZERO |
| OUTPUT SOCKET | Hard-Wiring (Terminal Block) |
| WAVEFORM | PURE SINEWAVE |
| OVERLOAD (AC Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| OVERLOAD (Battery Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| EFFICIENCY | |
| AC MODE | 95.5% |
| ECO MODE | 98.5% |
| BATTERY MODE | 94.5% |
| BATTERY | |
| BATTERY TYPE | Depending on the applications |
| BATTERY NUMBERS | 32~40 pcs (Adjustable) |
| CHARGING CURRENT (max.) | 1A~12A(Adjustable) |
| CHARGING VOLTAGE | +/- 13.65 VDC x N (N=16~20) |
| STATUS INDICATION | |
| LCD DISPLAY | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault |
| AUDIBLE ALARM | Battery Mode, Low Battery, UPS Fault, Overload |
| COMMUNICATION | |
| POWER MANAGEMENT SOFTWARE | Support Window Family, Linux & MAC |
| INTERFACE | USB & RS-232 Communication Port |
| INTELLIGENT SLOT | AS 400 / SNMP (Optional) |
| SURGE PROTECTION & FILTERING | |
| SPIKE, SURGE & LIGHTNING PROTECTION | YES |
| OVERLOAD, SHORT CIRCUIT PROTECTION | YES |
| PHYSICAL | |
| OPERATING MANAGEMENT | 0 - 40°C, < 95% @ Relative Humidity (Non-Condensing) |
| NOISE LEVEL | Less than 65dBA @ 1 Meter |
| DIMENSION (D x W x H)mm | 680 x 438 x 133 (3U) |
| WEIGHT (Kgs) | 35 |
| WARRANTY | |
| UPS WARRANTY | 2 Years Full Warranty include Parts, Labour & Battery |
| *Specication subjects to change without prior notice |

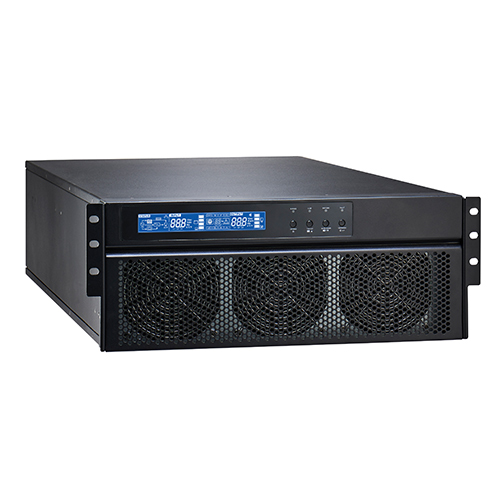

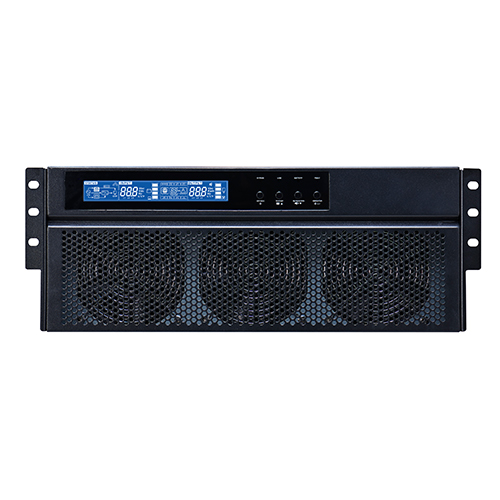

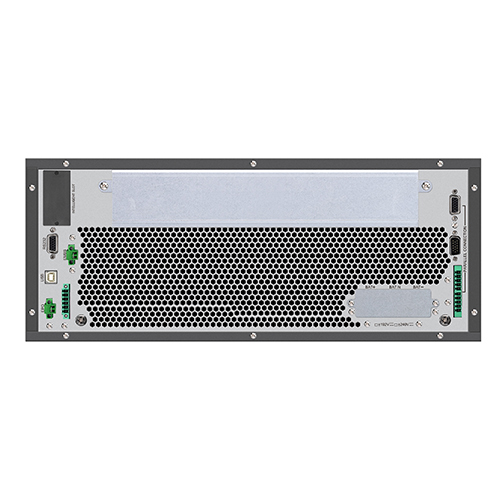

PowerBridge PRO RT 40KRS
| MODEL | PowerBridge PRO RT 40KRS |
| PHASE | 3-phase in / 3-phase out |
| CAPACITY (KVA/WATTS) | 40KVA / 40KW |
| PARALLEL CAPABILITY | 4 |
| INPUT | |
| NORMAL INPUT | 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| VOLTAGE RANGE | 190-520 VAC (3-phase) @ 50% load ; 305-478 VAC (3-phase) @ 100% load |
| FREQUENCY | 46~54 Hz or 56~64Hz |
| POWER FACTOR | ≥0.99 @ 100% load |
| OUTPUT | |
| OUTPUT VOLTAGE | 3 x 360*/380/400/415 VAC (3Ph+N) |
| OUTPUT POWER FACTOR | 1.0 |
| AC VOLTAGE REGULATION (Batt. Mode) | ± 1% |
| FREQUENCY RANGE (Synchronized Range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| FREQUENCY RANGE (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ± 0.1Hz |
| CURRENT CREST RATIO | 3:1 (MAX) |
| HARMONIC DISTORTION | ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load) |
| TRANSFER TIME (AC to Battery Mode) | ZERO |
| TRANSFER TIME (Inverter to Bypass) | ZERO |
| WAVEFORM | Pure Sinewave |
| OUTPUT SOCKET | Hard-Wiring (Terminal Block) |
| OVERLOAD (AC Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| OVERLOAD (Battery Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| EFFICIENCY | |
| AC MODE | 95.5% |
| ECO MODE | 98.5% |
| BATTERY MODE | 94.5% |
| BATTERY | |
| BATTERY TYPE | Depending on the applications |
| BATTERY NUMBERS | 32~40 pcs (Adjustable) |
| CHARGING CURRENT (max.) | 1A~16A (Adjustable) |
| CHARGING VOLTAGE | +/- 13.65 VDC x N (N=16~20) |
| STATUS INDICATION | |
| LCD DISPLAY | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault |
| AUDIBLE ALARM | Battery Mode, Low Battery, UPS Fault, Overload |
| COMMUNICATION | |
| POWER MANAGEMENT SOFTWARE | Support Window Family, Linux & MAC |
| INTERFACE | USB & RS-232 Communication Port |
| INTELLIGENT SLOT | AS 400 / SNMP (Optional) |
| SURGE PROTECTION & FILTERING | |
| SPIKE, SURGE & LIGHTNING PROTECTION | YES |
| OVERLOAD, SHORT CIRCUIT PROTECTION | YES |
| PHYSICAL | |
| OPERATING ENVIRONMENT | 0 - 40°C, < 95% @ Relative Humidity (Non-Condensing) |
| NOISE LEVEL | Less than 70dB @ 1 Meter |
| DIMENSION (D x W x H)mm | 797 x 438 x 176 (4U) |
| WEIGHT (Kgs) | 40 |
| WARRANTY | |
| UPS WARRANTY | 2 Years Full Warranty include Parts, Labour & Battery |
| *Specication subjects to change without prior notice |
PowerBridge PRO RT 60KRS
| MODEL | PowerBridge PRO RT 60KRS |
| PHASE | 3-phase in / 3-phase out |
| CAPACITY (KVA/WATTS) | 60KVA / 60KW |
| PARALLEL CAPABILITY | 4 |
| INPUT | |
| NORMAL INPUT | 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N) |
| VOLTAGE RANGE | 190-520 VAC (3-phase) @ 50% load ; 305-478 VAC (3-phase) @ 100% load |
| FREQUENCY | 46~54 Hz or 56~64Hz |
| POWER FACTOR | ≥0.99 @ 100% load |
| OUTPUT | |
| OUTPUT VOLTAGE | 3 x 360*/380/400/415 VAC (3Ph+N) |
| OUTPUT POWER FACTOR | 1.0 |
| AC VOLTAGE REGULATION (Batt. Mode) | ± 1% |
| FREQUENCY RANGE (Synchronized Range) | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
| FREQUENCY RANGE (Batt. Mode) | 50Hz ±0.1Hz or 60Hz ± 0.1Hz |
| CURRENT CREST RATIO | 3:1 (MAX) |
| HARMONIC DISTORTION | ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load) |
| TRANSFER TIME (AC to Battery Mode) | ZERO |
| TRANSFER TIME (Inverter to Bypass) | ZERO |
| WAVEFORM | PURE SINEWAVE |
| OUTPUT SOCKET | Hard-Wiring (Terminal Block) |
| OVERLOAD (AC Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| OVERLOAD (Battery Mode) | 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately |
| EFFICIENCY | |
| AC MODE | 95.5% |
| ECO MODE | 98.5% |
| BATTERY MODE | 94.5% |
| BATTERY | |
| BATTERY TYPE | Depending on the applications |
| BATTERY NUMBERS | 32~40 pcs (Adjustable) |
| CHARGING CURRENT (max.) | 1A~18A (Adjustable) |
| CHARGING VOLTAGE | +/- 13.65 VDC x N (N=16~20) |
| STATUS INDICATION | |
| LCD DISPLAY | Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, UPS Fault |
| AUDIBLE ALARM | Battery Mode, Low Battery, UPS Fault, Overload |
| COMMUNICATION | |
| POWER MANAGEMENT SOFTWARE | Support Window Family, Linux & MAC |
| INTERFACE | USB & RS-232 Communication Port |
| INTELLIGENT SLOT | AS 400 / SNMP (Optional) |
| SURGE PROTECTION & FILTERING | |
| SPIKE, SURGE & LIGHTNING PROTECTION | YES |
| OVERLOAD, SHORT CIRCUIT PROTECTION | YES |
| PHYSICAL | |
| OPERATING ENVIRONMENT | 0 - 40°C, < 95% @ Relative Humidity (Non-Condensing) |
| NOISE LEVEL | Less than 70dB @ 1 Meter |
| DIMENSION (D x W x H)mm | 797 x 438 x 176 (4U) |
| WEIGHT (Kgs) | 45 |
| WARRANTY | |
| UPS WARRANTY | 2 Years Full Warranty include Parts, Labour & Battery |
| *Specication subjects to change without prior notice |
